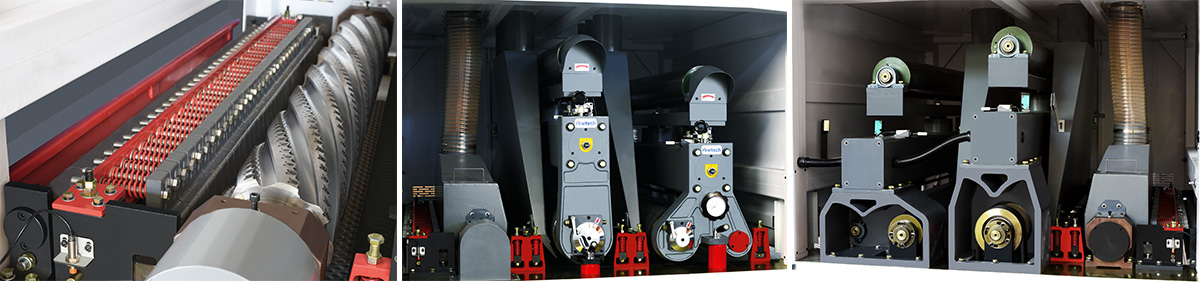

The high strength body, imported spiral planer roller and segment press beam structure are closely matched with the press rollers, avoid the problem of biting head and sweeping end of workpiece.
Over-thickness detection device and casting anti-back device are used to protect the machine and avoid hurt workers caused of rebound of workpiece, ensure the safety of operators.
Siemens electrical parts are safe, reliable and durable.
Conveyor belt transmission adopts helical-spiral taper gear reducer with inverter, transport smooth and reliable.
| 技術參數(shù) | Technical Specification | SPR- RP1300 | SPR- R1000 | SPR- P700 |
|---|---|---|---|---|
| 最大加工寬度 | Max working width | 1300mm | 1000mm | 700mm |
| 最短加工長度 | Min working length | 540mm | 356mm | 491mm |
| 加工厚度 | Working thinkness | 10-160mm | 10-160mm | 10-160mm |
| 輸送速度（變頻調速） | Feeding speed | 5-30m/min | 5-30m/min | 5-30m/min |
| 砂帶尺寸 | Abrasave belt size | 1330×2200mm | 1030×2000mm | 730×1900mm |
| 總功率 | Total Moter power | 78.92KW | 59.24KW | 43.94KW |
| 工作壓力 | Working air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 壓縮空氣消耗量 | Air consumption | 17m3 /h | 17m3 /h | 12m3 /h |
| 吸塵量 | Volume of dust collection device | 13700m 3 /h | 13700m 3 /h | 8500m 3 /h |
| 外形尺寸 | Overall dimensions | 2020×2770×2190mm | 1663×2544×1980mm | 1363×2544×1980mm |
| 重量 | Net weight | 5600kg | 3350kg | 2800kg |
